PESI WP222M rev C2
PESI WP222M C2
Availability: EoL
(Est.) release date: March 2002
Interface: PCMCIA (16-bit)
ID: 0254:0000
FCC ID: none available
WI1 chip1: ShareWave SW2220
WI1 chip2: RFMD RF3000
WI1 chip3: RFMD RF2948B
Probable Linux driver
none
(see also passys)
Antenna connector: none
b
| Chip1 brand | Chip2 brand | |
|---|---|---|
| PESI WP222M rev A1 | ShareWave | RFMD |
| PESI WP222M rev C2 | ShareWave | RFMD |
For a list of all currently documented Cirrus Logic (ShareWave) chipsets with specifications, see Cirrus Logic.
For a list of all currently documented RFMD (Qorvo) chipsets with specifications, see RFMD.
A date code (year+week) of 0209 (Feb. 25th to March 3rd, 2002) is silkscreened on the board.
This device uses the ShareWave (later bought out by Cirrus Logic) Bodega chipset.
- The cards support 802.11b and ShareWave's proprietary Whitecap2 protocol.
This card's PCMCIA device strings in Windows are..
- PCMCIA\Cirrus-Whitecap2-C12D
- PCMCIA\Cirrus-Whitecap2-0254-0000
The card works in Windows with the WP222M driver.. which can be downloaded here.

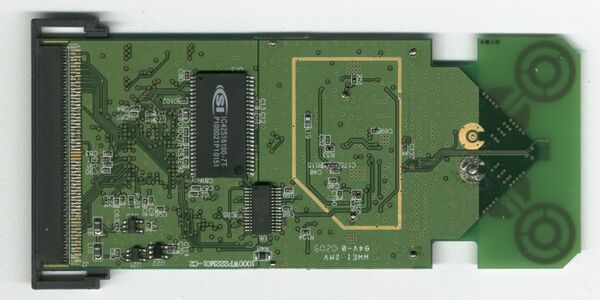

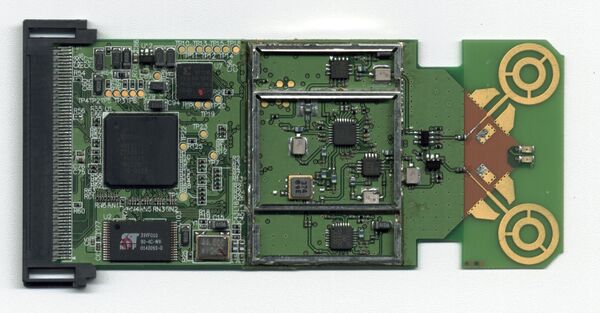

Images
